| ब्रांड नाम: | SUNCAR |
| मॉडल संख्या: | 2438यू1106आर100 |
| एमओक्यू: | परीक्षण आदेश स्वीकार्य |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | अंदर पीपी बैग, बाहर कार्टन बॉक्स |
| भुगतान की शर्तें: | वेस्टर्न यूनियन, एल/सी, टी/टी, , डी/ए, डी/पी, पेपैल |

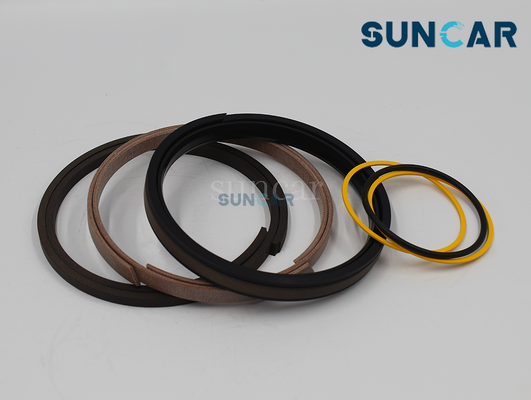

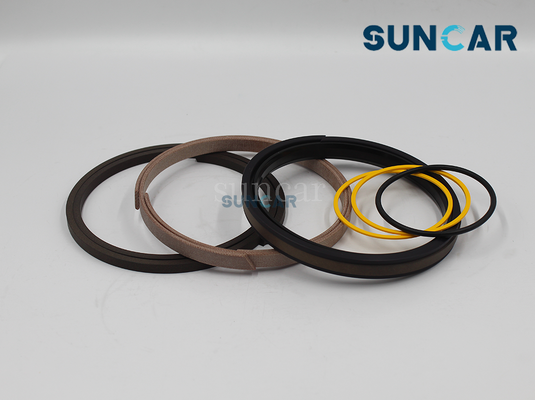

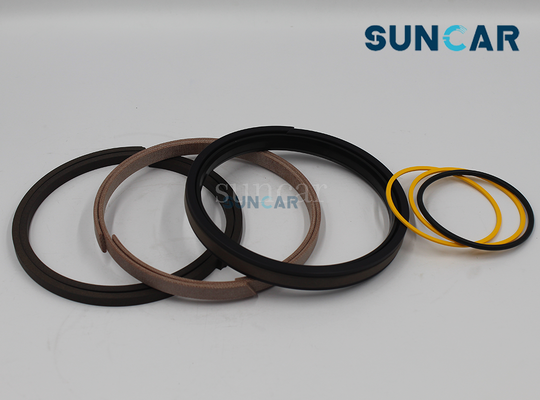

| Product Name | 2438U1106R100 Arm Cylinder Oil Seal Repair Kit |
| Compatible Models | Kobelco Excavator SK200, SK200LC, SK200-3, SK200-4, SK210, SK210LC |
| Brand | SUNCAR |
| Origin | China (Mainland) |
| Condition | 100% New |
| Certification | ISO9001 |
| Packing | PP bag inside, carton box outside |
| Position | Part Number | Quantity | Parts Name |
|---|---|---|---|
| . | LQ01V00030F1 | [1] | CYLINDER ASSY |
| 1 | NA | [1] | NOT SERVICED |
| 2 | NA | [1] | NOT SERVICED |
| 3 | YY01V00048S003 | [1] | CYLINDER HEAD |
| 4 | 2438U1106S17 | [1] | BUSHING |
| 5 | 2438U959S5 | [1] | RING |
| 6 | YN01V00151S006 | [1] | RING |
| 7 | YN01V00151S007 | [1] | RING |
| 8 | 2438U959S8 | [1] | RING |
| 9 | LP01V00008S009 | [1] | RING |
| 10 | ZD12G12000 | [1] | O-RING |
| 11 | 2438U1102S12 | [1] | O-RING |
| 12 | ZS23C16075 | [12] | SCREW, Hex Socket Head |
| 13 | LQ01V00030S013 | [1] | BEARING |
| 14 | LQ01V00030S014 | [1] | PISTON |
| 15 | 2438U675S20 | [1] | RING |
| 16 | YM01V00008S017 | [2] | RING |
| 17 | LQ01V00030S017 | [2] | RING |
| 18 | 2438U675S28 | [2] | RING |
| 19 | 2438U999S21 | [1] | SET SCREW |
| 20 | 2436U330S16 | [1] | BALL |
| 21 | YN12B02221P1 | [4] | BUSHING |
| 22 | YN01V00153S022 | [4] | SEAL |
| 23 | NA | [1] | NOT SERVICED |
| 24 | NA | [1] | NOT SERVICED |
| 25 | YN12B02221P1 | [2] | BUSHING |
| K. | LQ01V00030R100 | [1] | SEAL KIT |
| K. | LQ01V00030R200 | [1] | REPAIR KIT |
| K. | LQ01V00030R300 | [1] | REPAIR KIT |
| K. | LQ01V00030R400 | [1] | KIT |
| K. | LQ01V00030R500 | [1] | KIT |
| K. | LQ01V00030R600 | [1] | KIT |
| K. | LQ01V00030R700 | [1] | KIT |
|
|
